Magnus One Cold & Ambient Bottled Water Cooler (Bottom Loaded)
The Magnus One Cold & Ambient Bottled Water Cooler combines modern styling with practical bottom-loading convenience. Designed to eliminate the need for heavy lifting, the water bottle is housed discreetly within the base of the unit. No more lifting heavy bottles, making bottle changes quick, easy and safer for users. Finished in premium black with contrasting gloss and matte panels.
Furthermore, a low-noise circulation pump ensures quiet operation, while hygiene-focused features such as an integrated hygiene guard and stainless steel suction pipe help maintain water quality and reduce contamination risks.

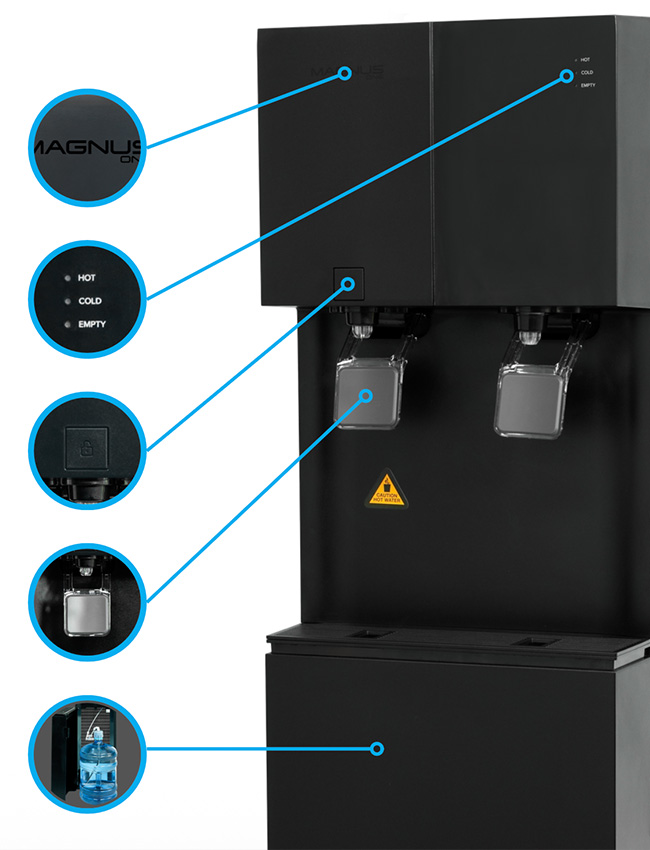

Bottom Loading Design – Easy bottle replacement without lifting heavy bottles onto the cooler.
Cold & Ambient Water – Provides chilled drinking water alongside ambient temperature water.
Quiet Operation – Low-noise circulation pump ideal for customer-facing environments.
Premium Black Finish – Contemporary design with gloss and matte detailing.
Stainless Steel Suction Pipe – Helps reduce secondary contamination risks.
Integrated Hygiene Guards – Enhanced protection around dispensing areas.
Empty Bottle Indicator – LED warning light alerts users when the bottle requires replacement.
Soft-Touch Rubber Paddle Taps – Durable and comfortable to operate.
Embossed Front Logo – Subtle branding for a premium appearance.
Easy Access Bottle Door – Convenient access to the bottle compartment.
25cm Dispense Height – Suitable for filling bottles, cups and reusable drink containers.
| Feature | Specification |
|---|---|
| Product Code | WCBCM1 |
| Water Options | Ambient & Chilled |
| Installation Type | Bottled Water Cooler |
| Bottle Loading | Bottom Loading |
| User Capacity | 10–20 Users |
| Chilled Water Capacity | 20 Litres per Hour |
| Ambient Water Capacity | Continuous Supply |
| Weight | 23kg |
| Dispense Height | 25cm |
| Dimensions (H × W × D) | 1160mm × 320mm × 412mm |
| Cold Temperature Control | Thermostat |
| Cold Water Temperature | 10°C or below* |
| Cold Tank Material | Stainless Steel (STS304) |
| Cold Tank Capacity | 1.7 Litres |
| Refrigerant | R600a |
| Condenser | Wire Type |
| Cold Wattage | 70W |
| Voltage | 220V–240V |
| Standby Power Consumption (24h) | 0.10kWh |
| Power Supply | UK 3 Pin Plug |
| Power Cord Length | 1.5m |
The AA3300X is a bottle fed water cooler and does not require connection to a mains water supply.
Installation Requirements:
– Standard 230V electrical connection
– Suitable floor space for installation
– Water Bottle Storage (optional)
✔ Rental Customers: Installation is included and carried out by an Active Water Coolers engineer
✔ Purchase Customers: Professional installation is available as an optional extra

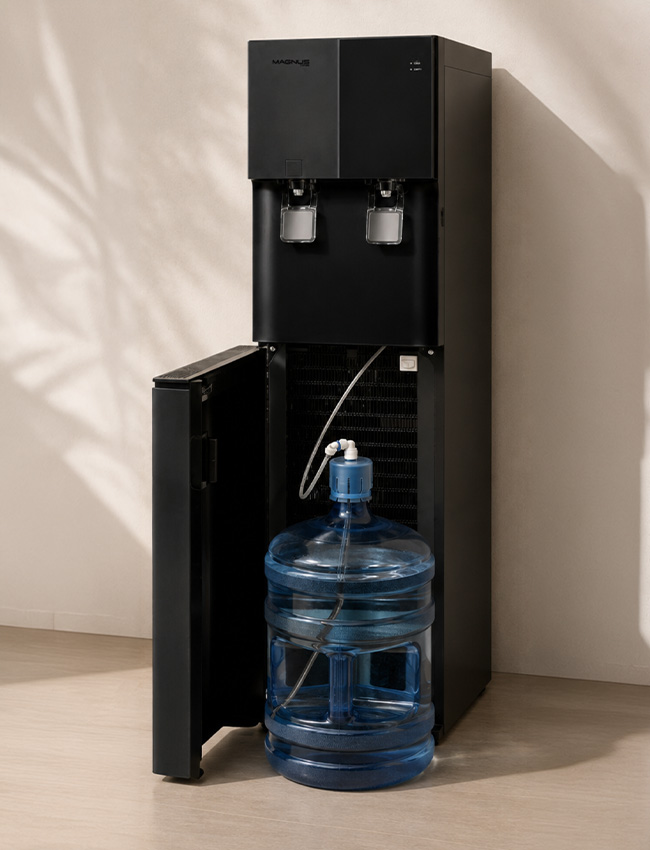

The Magnus One stores the water bottle inside the base cabinet rather than on top of the cooler. A built-in pump draws water from the bottle, making bottle changes much easier and eliminating the need to lift heavy bottles onto the unit.
This model provides ambient and chilled water, making it ideal for workplaces and environments where refreshing cold water is required throughout the day.
The Magnus One delivers chilled water at approximately 10°C or below, depending on room conditions and incoming water temperature.
The Magnus One is recommended for 10–20 users, making it well suited to small and medium-sized offices, reception areas, meeting rooms and staff kitchens.
No. The Magnus One features a low-noise circulation pump designed to minimise operating sound, making it suitable for quiet office and customer-facing environments.
Yes. The cooler includes integrated hygiene guards and a stainless steel suction pipe, helping to reduce contamination risks and maintain water quality.
Yes. An integrated LED empty bottle indicator alerts users when the bottle needs replacing, helping to prevent interruptions to water supply.
Like all bottled water coolers, regular cleaning and sanitisation are recommended to maintain hygiene and performance. Active Water Coolers can advise on servicing and maintenance requirements.
